When powering your RC model, choosing the right battery setup is crucial for performance and longevity. Batteries can be connected in series or parallel, and each configuration has distinct effects on voltage, capacity, and runtime. At RC Vanguard, we want to ensure you make the best choice for your RC vehicle, plane, or drone.
In this article, we’ll break down the differences between series and parallel connections, their pros and cons, and when to use each setup.
Series Connection: Increasing Voltage

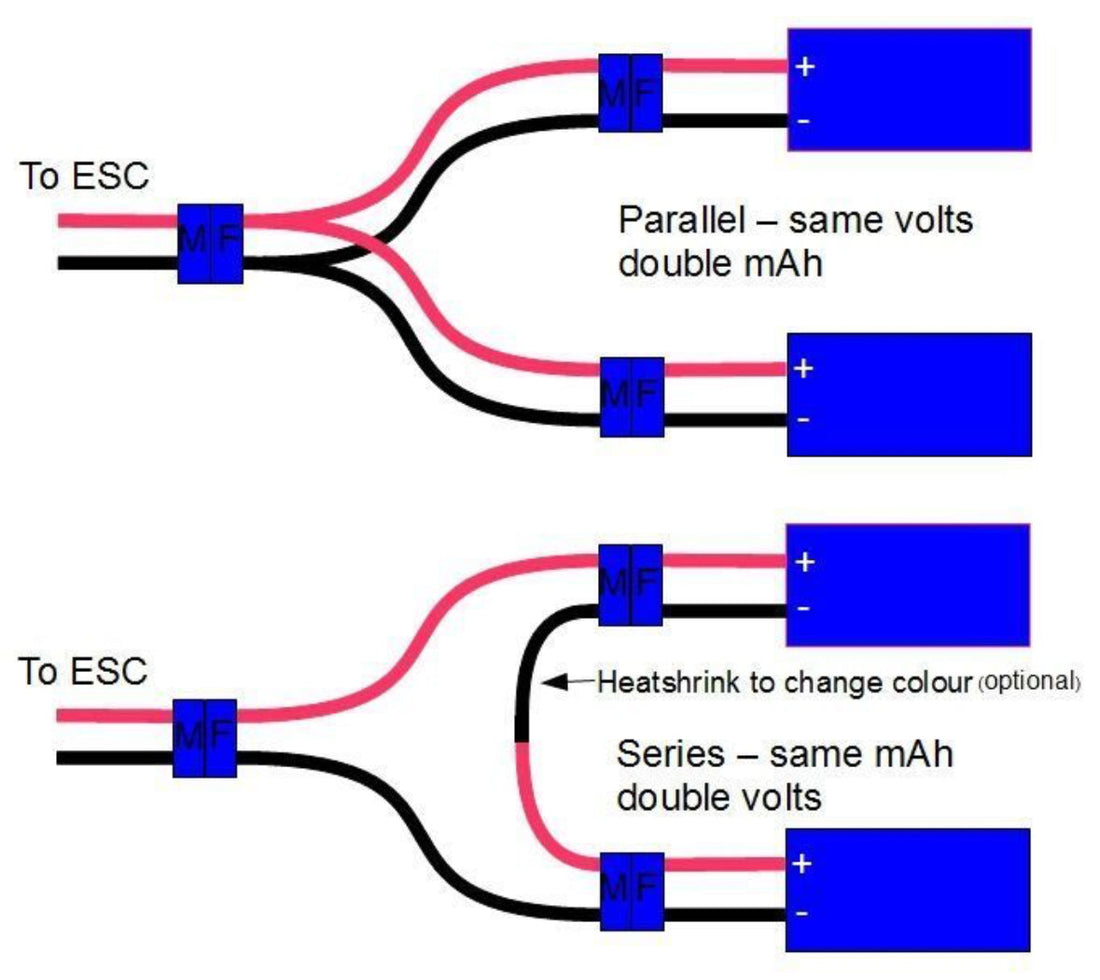

A series connection involves linking the positive terminal of one battery to the negative terminal of the next. This setup increases voltage while keeping the capacity (mAh) the same.
How It Works
• If you connect two 3S 2200mAh LiPo batteries in series, you get:
• Voltage: 3S (11.1V) + 3S (11.1V) = 6S (22.2V)
• Capacity: 2200mAh (unchanged)
Pros of Series Connection
✅ Higher Voltage → Increases motor speed and power output.
✅ More Efficiency → Some RC models and drones operate better at higher voltages.
✅ Reduces Current Draw → Higher voltage means lower current for the same power, reducing wire heat and resistance.
Cons of Series Connection
❌ Needs Components Rated for Higher Voltage → Your ESC (Electronic Speed Controller) and motor must support the increased voltage.
❌ Balancing Required → Unequal charge levels between batteries can cause issues.
❌ Potential for Overheating → Higher voltage can strain components if not properly managed.
When to Use Series Connection?
• If your RC model requires high voltage for more power and speed.
• If you’re using a high-performance brushless motor that supports 6S or higher.
• For drones and airplanes that need high efficiency.
Parallel Connection: Increasing Capacity
A parallel connection involves connecting all positive terminals together and all negative terminals together. This setup increases capacity (mAh) while keeping voltage the same.
How It Works
• If you connect two 3S 2200mAh LiPo batteries in parallel, you get:
• Voltage: 3S (11.1V) (unchanged)
• Capacity: 2200mAh + 2200mAh = 4400mAh
Pros of Parallel Connection
✅ Longer Runtime → Doubles the battery life without changing voltage.
✅ Less Strain on Each Battery → Current is shared, reducing stress on individual cells.
✅ Same Voltage Compatibility → No need to upgrade your ESC or motor.
Cons of Parallel Connection
❌ No Speed Increase → The motor operates at the same voltage.
❌ Potential Imbalance Issues → If one battery is weaker, it can drain the other.
❌ Larger and Heavier Setup → More capacity means more weight, affecting performance.
When to Use Parallel Connection?
• If you need longer flight or drive time without increasing speed.
• If your RC vehicle or drone operates at a fixed voltage and you want to extend battery life.
• If you have a high-drain RC model and need more sustained power.
Which Setup is Best for You?
Feature - Series Connection - Parallel Connection
Increases Voltage? ✅ Yes ❌ No
Increases Capacity? ❌ No ✅ Yes
Increases Speed & Power? ✅ Yes ❌ No
Extends Runtime? ❌ No ✅ Yes
Requires High Voltage Components? ✅ Yes ❌ No
Suitable for Drones & Planes? ✅ Yes (High voltage efficiency) ✅ Yes (Longer flights)
Suitable for RC Cars? ✅ Yes (More speed) ✅ Yes (More runtime)
Final Thoughts
Choosing between series and parallel battery connections depends on your RC model’s power needs, speed requirements, and desired runtime.
• For high-speed RC cars, powerful drones, and planes, a series connection boosts voltage for greater performance.
• For endurance-focused RC planes, drones, and crawlers, a parallel connection ensures longer operation times.
